SUPERIORITY
- Efficient and fast, open/close the cap of the whole box of SBS structure freezing storage tubes, open/seal the whole box of caps in less than 30 seconds (semi-automatic hand-held equipment needs more than 2 minutes), convenient for pipetting the whole box of biological samples, reduce the temperature rise of samples due to the opening/closing of the cap and reduce the time of exposure to air.
- Modular design, in the same housing can be installed to adapt SBS96, 48, 24 and other specifications of the head, as well as adapt Micronic, Thermo Matrix, Biobay Biologicals and other types of tubing head (the head needs to be customized).

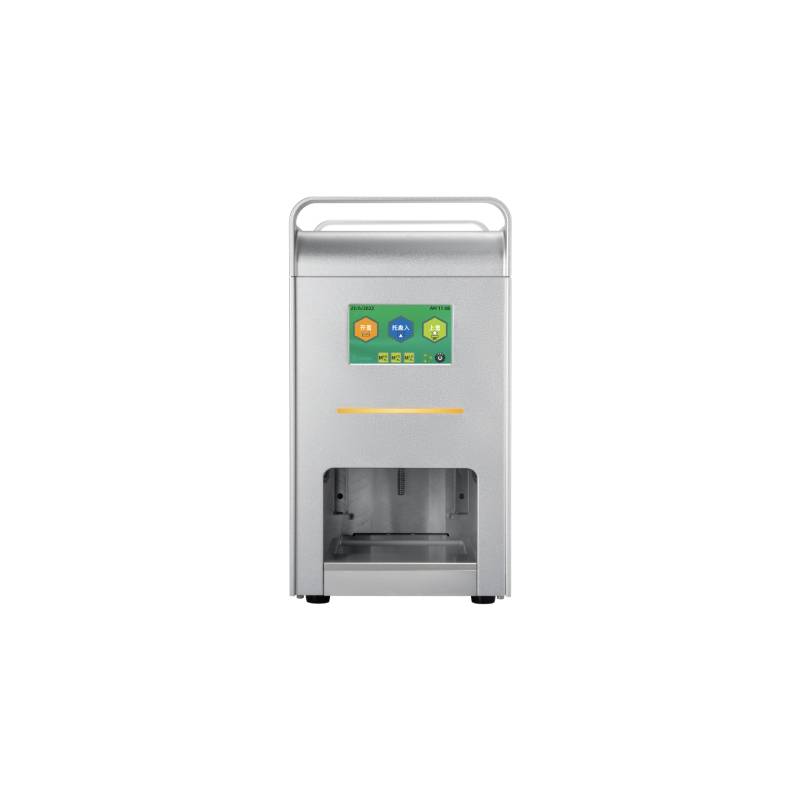

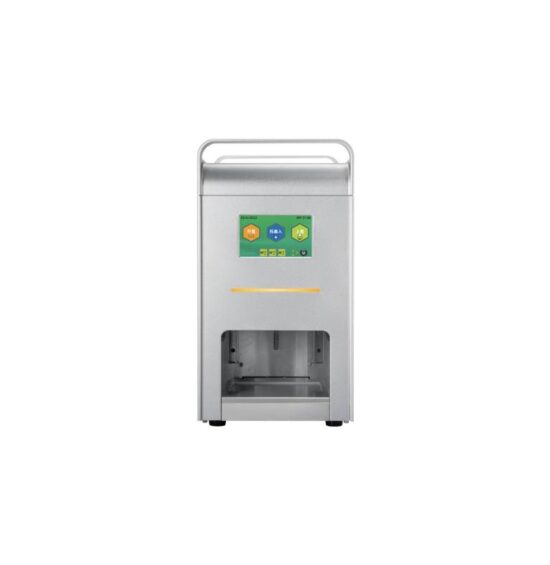

- Graphical operation, using the touch screen as the user interface, one-touch selection of open/close caps, beautiful style and simple operation.
- Flexible adaptation, a variety of adapters can be provided to match different heights of tubes, without the need to modify the machine settings and system programs.
- Optimize the torque, based on a large number of products cap sealing torque test, select the best torque value that can simultaneously meet the needs of a variety of cap sealing as the preset torque of the product, to achieve effective sealing of a variety of caps.
- Auto-detect, automatically detect the state of the tube cap to avoid misoperation of the open/close cap action.

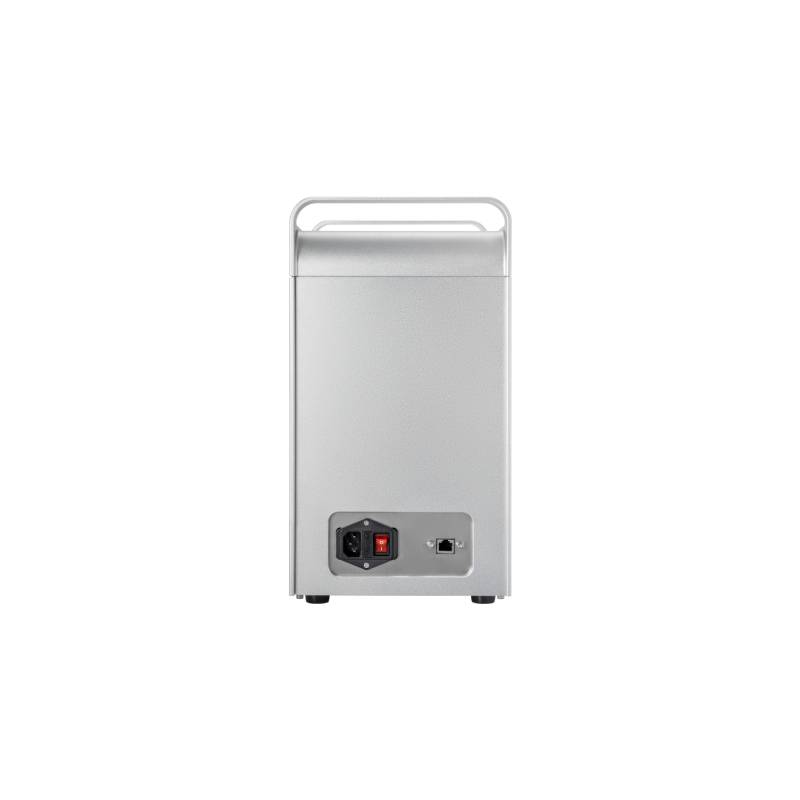

- Data interface, optional standard RJ45 interface, to meet the upper computer or workstation coordination control needs.
- Multi-color warning, the machine has a three-color warning light, through the light changes to understand the work, fault, standby three states.
Technical Parameters
- The product shape length, width and height is 340*208*388mm, the whole power is not more than 250W.
- Positioning adjustment, positioning error degree: ±0.05mm.

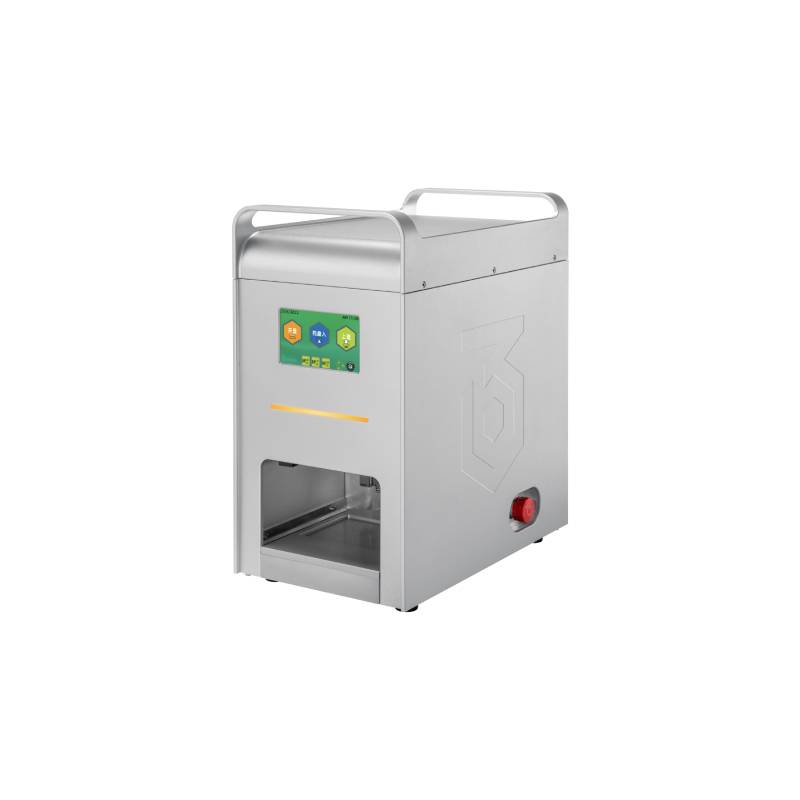

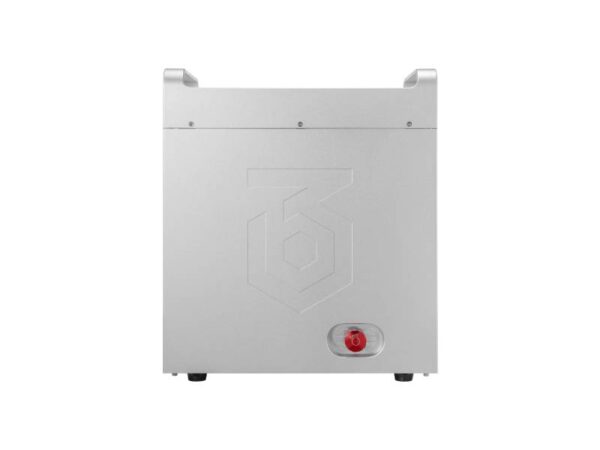

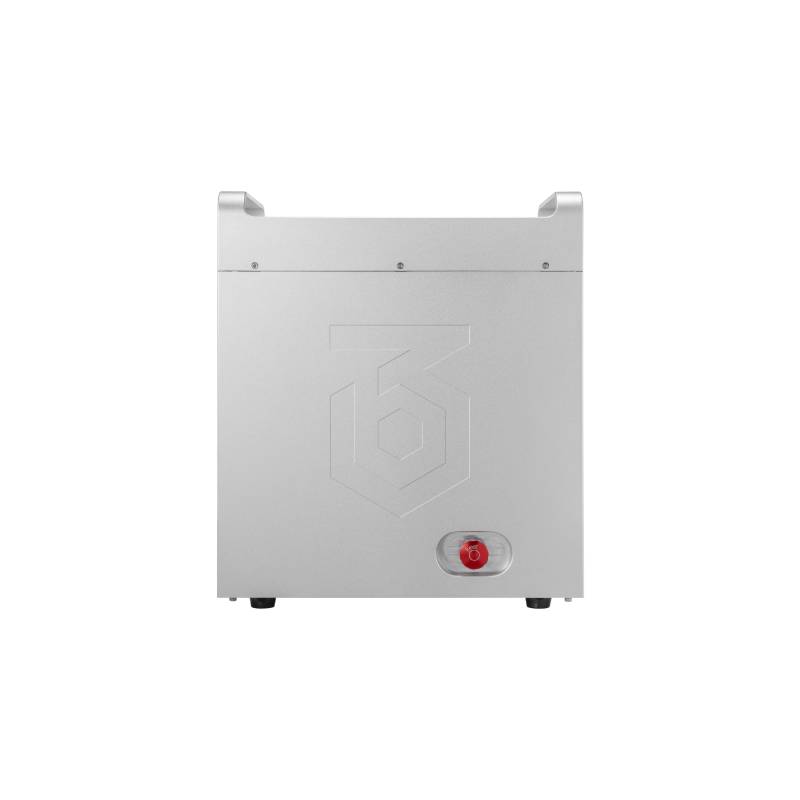

- Equipped with emergency stop switch, in case of emergency can be immediatly stopped.
- Equipped with RJ45 communication interface to communicate with third-party control equipment to realize joint control.
- Operating conditions: supply voltage AC220V, 50Hz, ambient temperature 0-40℃, relative humidity <85%H.
ORDERING
Ordering Information
货号 | 产品名称 | 规格 |
B/M-96 | 自动化开盖器（96孔） | 台式批量自动化开盖器，可以一次开启或盖上96孔排列冻存管管帽 |
B/M-48 | 自动化开盖器（48孔） | 台式批量自动化开盖器，可以一次开启或盖上48孔排列冻存管管帽 |
B/M-24 | 自动化开盖器（24孔） | 台式批量自动化开盖器，可以一次开启或盖上24孔排列冻存管管帽 |
